Method of Sections: Example

In this example, we will demonstrate the application of the Method of Sections in finding the internal forces in a select group of members. The solution for the 9-bar truss and loading shown below is broken into two parts

a) Support reactions
b) Axial forces in members , and .

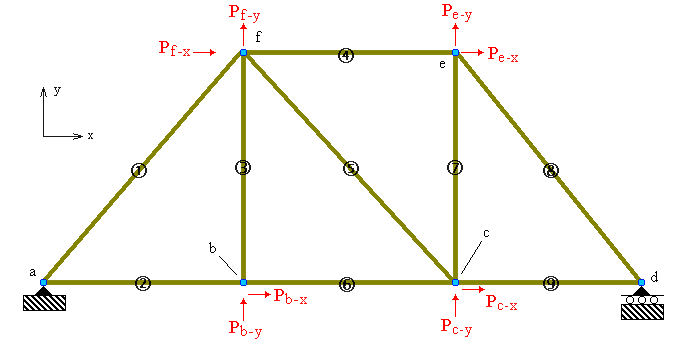

Move the mouse over the figure to see the exploded view (complete free-body diagram) of the truss
