Method of Joints: Example
In this example, we will demonstrate
the application of the Method of Joints in calculating the internal member forces

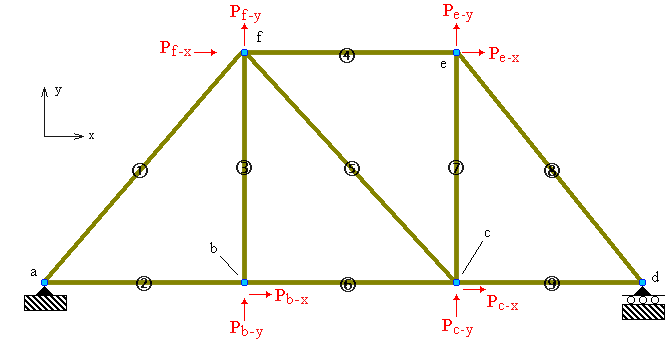

of the 9-bar truss shown in the figure below.
The truss is shown to be under 8 joint forces. We can specify the magnitude
and direction of each external force in the LiveMath solution sequence
demonstrated below.
The solution is broken into two parts
Move the mouse over the
figure to see the exploded view
(complete free-body diagram) of the truss.
a) Support reactions
b) Axial forces in the nine members
