Section A3.10 example 4 SECTION A3.10 EXAMPLE 4

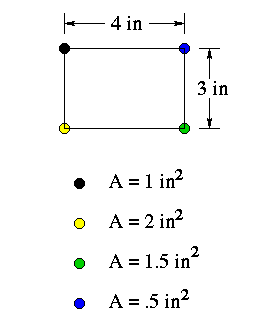

For the skin-stringer cross section shown, determine the

  • (a) moment of inertia about the centroidal x axis
  • (b) moment of inertia about the centroidal y axis
  • (c) product of inertia


    EQUATIONS USED


    SOLUTION

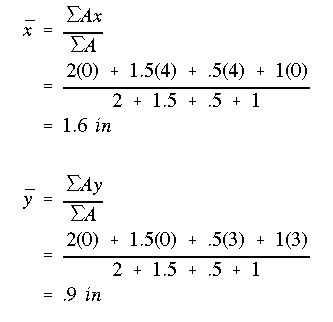

    With respect to the yellow stiffener with the area of 2 sq in , the centroid is located at

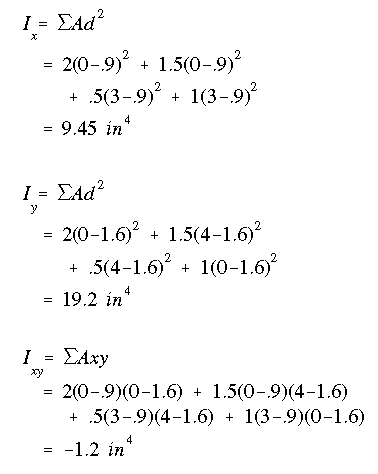

    The rectangular moments and product of inertia are

    Because the cross section is not symmetrical about x or y axis, the product of inertia is not zero.
